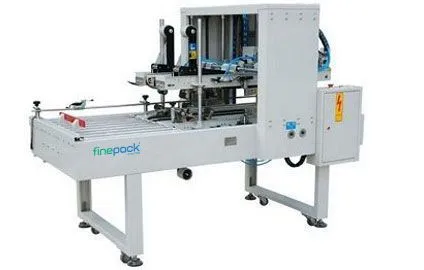

Model: JFX-5060
- JFX series is designed to seal the edges of top and bottom flaps by applying adhesive tape
- Cost effective, high speed
- Easy size changeoverst is especially ideal for applications that require high degree of leak-proofness
- For integration into carton sealer to form unmanned production line or as stand alone machine
Parameters:
| JFX-5060 | |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 850 |
| Air Compressor (Mpa) | 0.5～0.6 |
| Max. Carton Size (L×W×H)(mm) | 600×500×500 |
| Min. Carton Size (L×W×H)(mm) | 320×200×180 |
| Speed (m/min) | 20 m/min（30 cartons/min） |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | 750 |
| Width of Adhesive Tape (mm) | 60，76（optional） |
| Package Weight (kg) | 2.5-30 |
| External Dimensions (L×W× H)(mm) | 1955×1060×1510 |
| Net Weight (kg) | 40 |
