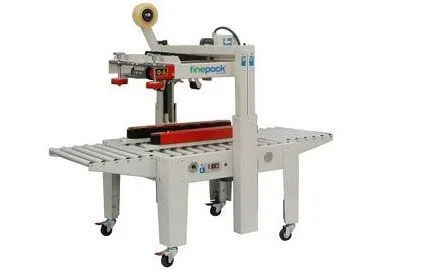

Model: FP CS-5050B
The machine are operator fed and designed for heavy duty applications. These machines are reliable, cost-effective and durable providing savings to your production process. More importantly, these machines provide a professional looking seal. The FP CS-5050B Semi-Automatic Uniform Carton Sealer with Easy Manual Carton Size Adjustment has a 4-belt design (2 side, 1 top, and 1 bottom). The machine comes complete with infeed/exit conveyors, casters, power cord, and plug.
The operator simply folds the top flats of the corrugated carton and feeds it into the machine. The FP CS-5050B applies a single tape to both the top and bottom of the case simultaneously. The FP CS-5050B can be easily adjusted in only seconds to process a different size carton.
- Â Excellent for heavier boxes.
- Adjustable height of table
- Heavy duty frame
- Manually adjust height and width of machine for each box size
- Suitable for heavier cartons
- Top/bottom and side driving
- Operator feeds and folds flaps into machine
Parameters:
| FP CS-5050B | |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 270 |
| Max. Carton Size (W×H)(mm) | 500×500 |
| Min. Carton Size (W×H)(mm) | 130×120 |
| Speed (m/min) | 20 m/min（30 cartons/min） |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | 580-780 |
| Width of Adhesive Tape (mm) | 48，60，76（optional） |
| External Dimensions (L×W× H)(mm) | 1730×950×(960-1550) |
| Net Weight (kg) | 125 |
